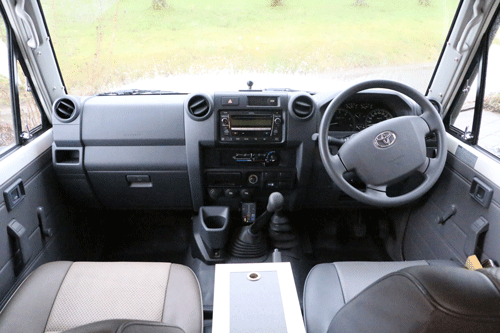

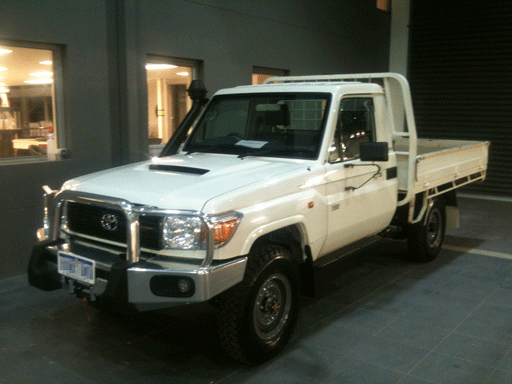

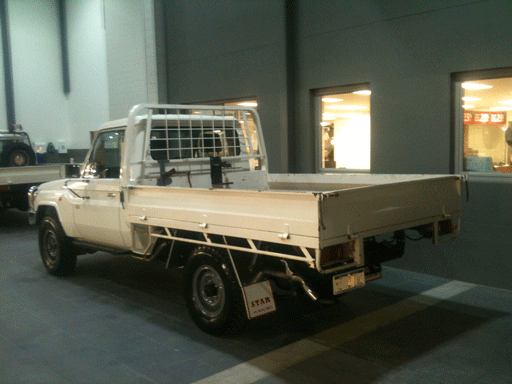

Toyota Landcruiser 79 build for 4-person multi-month overlanding.

Purpose: Family overlander for 4 (2 adults and 2 kids) for multi-month trips, for blacktop and gravel - not for tracks like Old Telegraph Track (Queensland , Australia) but for trips like Great Central and maybe even for Canning Stock Route.
Name: Toyta

Year: 2012
Place: Perth, Australia
Make: Toyota

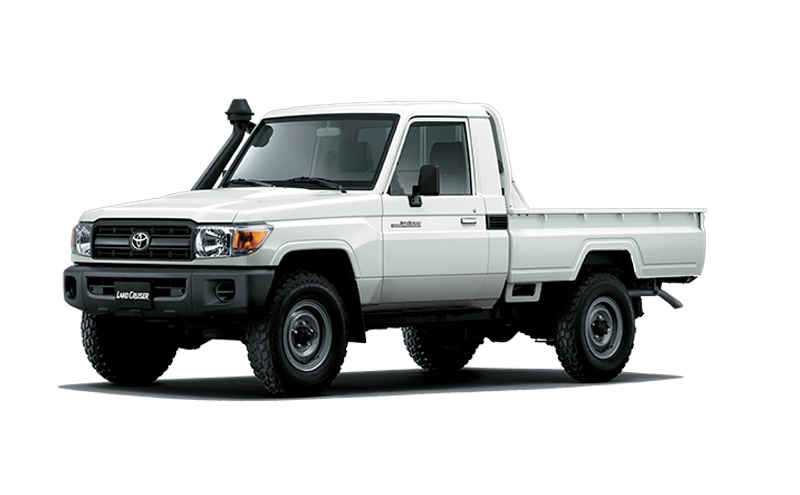

Model: Landcruiser 79 T/D Cab Chassis Workmate
Color: French Vanilla 058 (white!)
Engine: Turbo Diesel V8

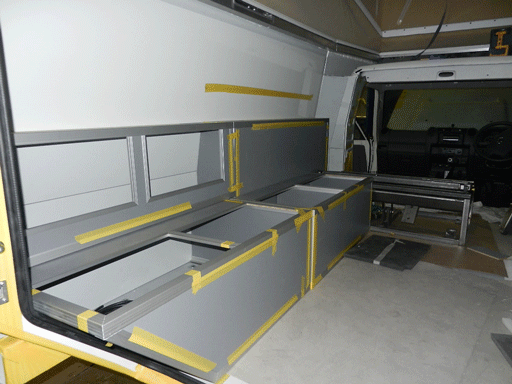

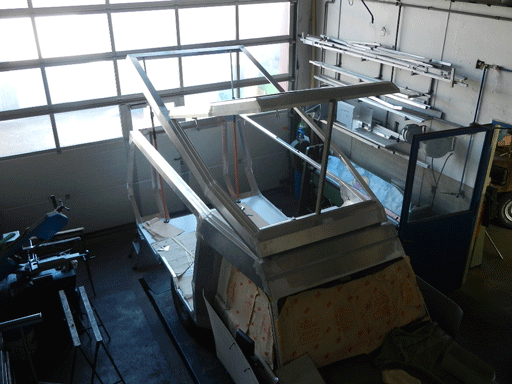

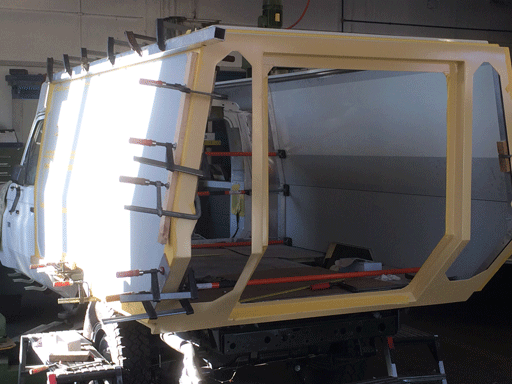

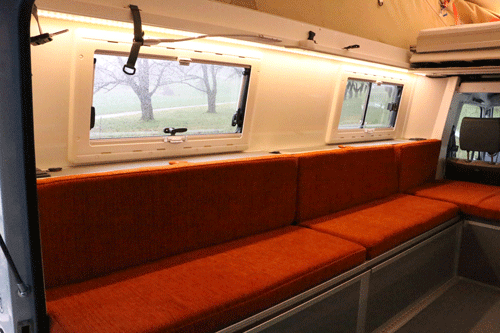

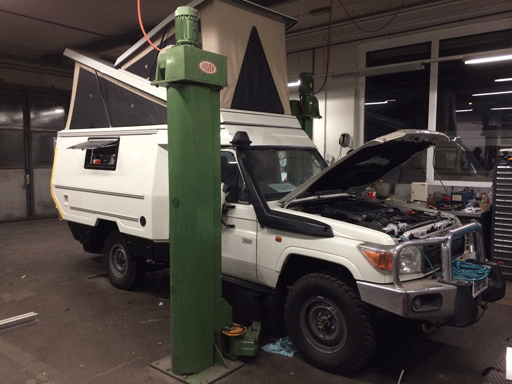

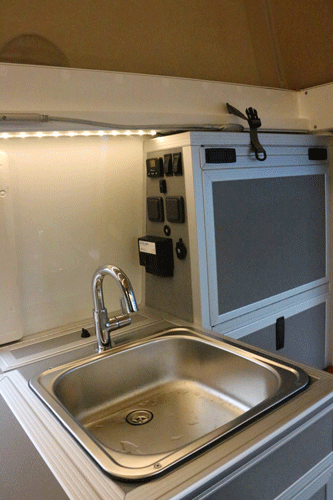

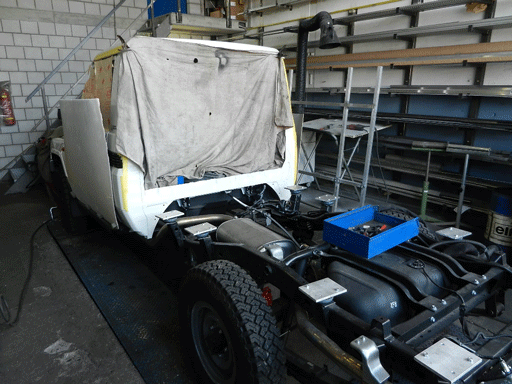

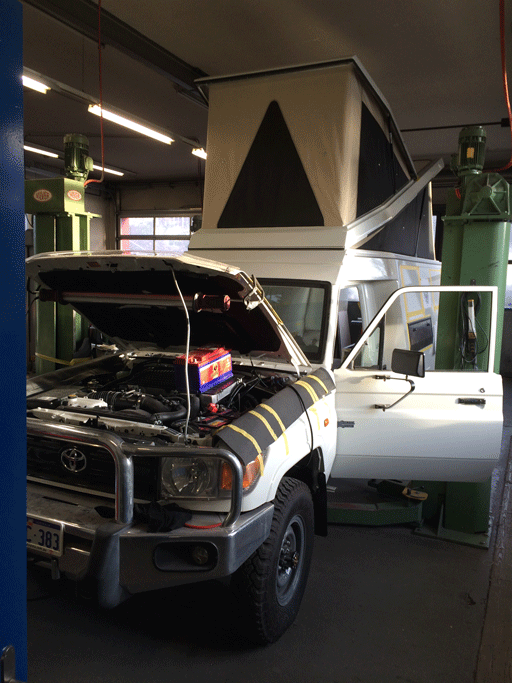

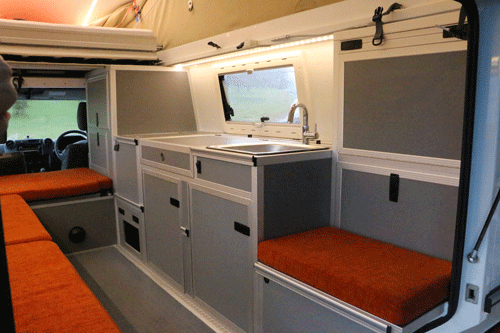

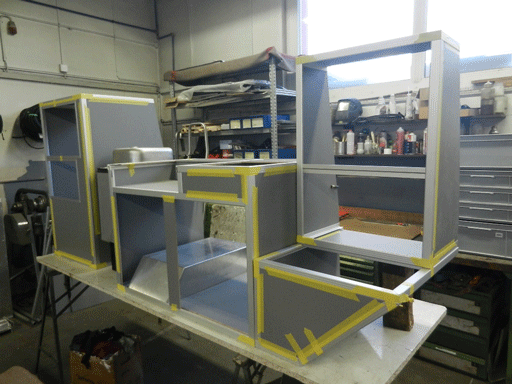

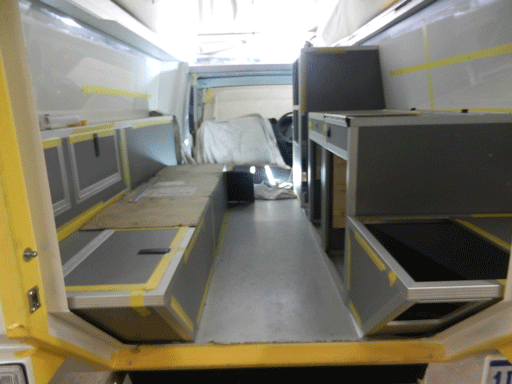

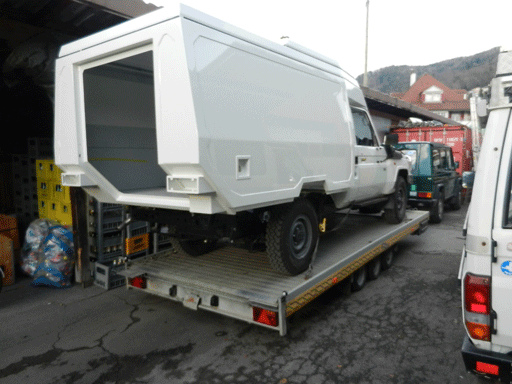

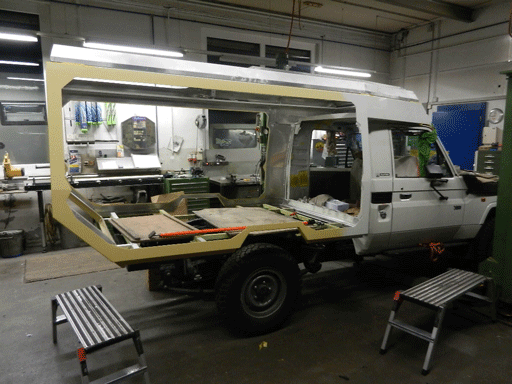

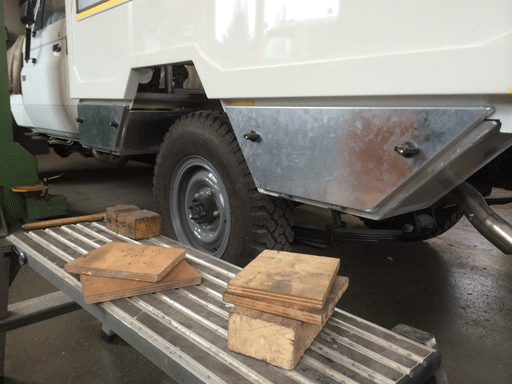

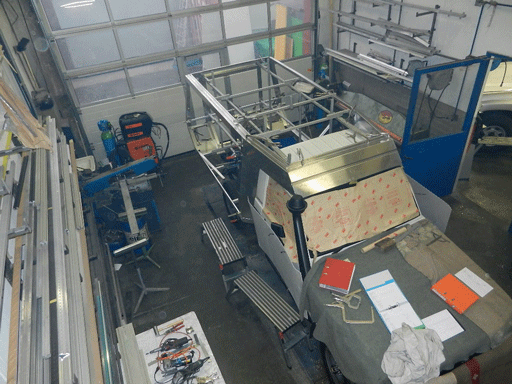

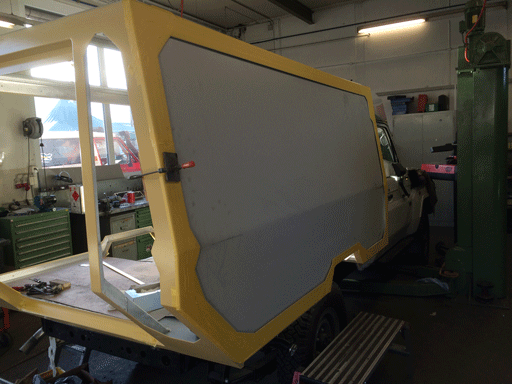

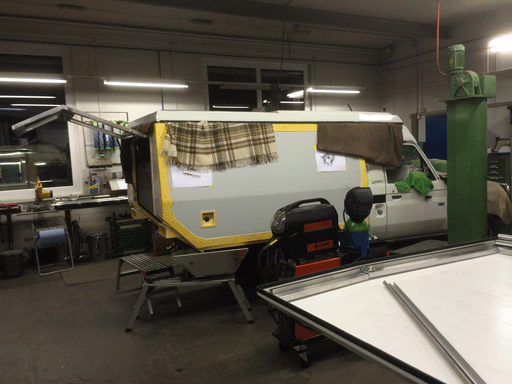

Camper build in Switzerland

Year: 2013 - 2014

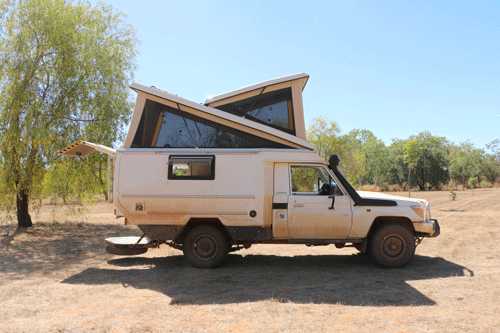

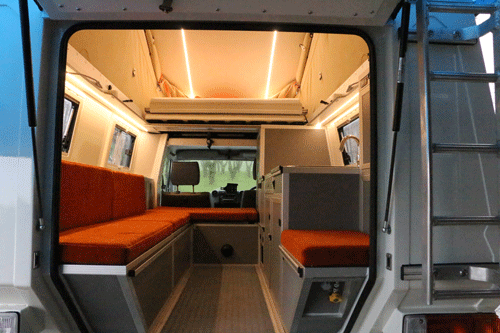

Completed

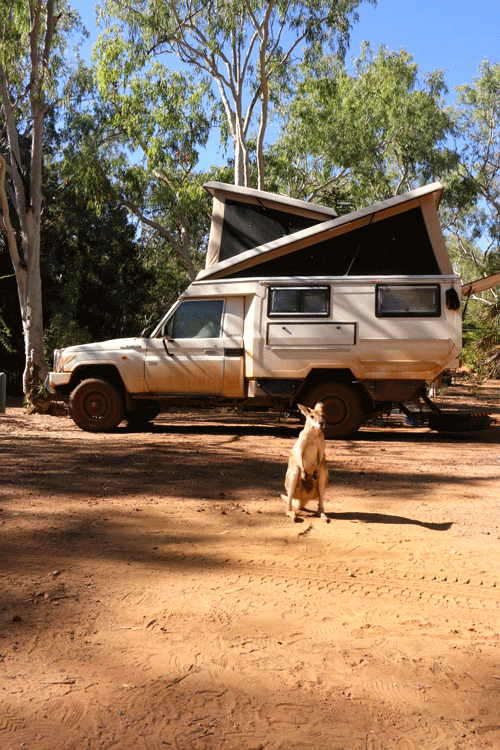

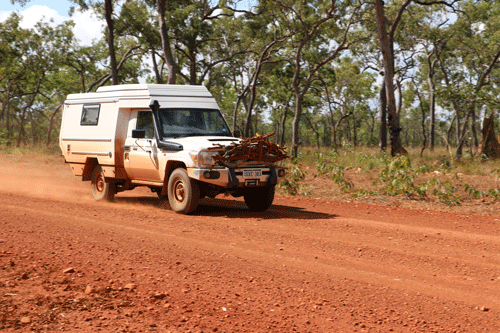

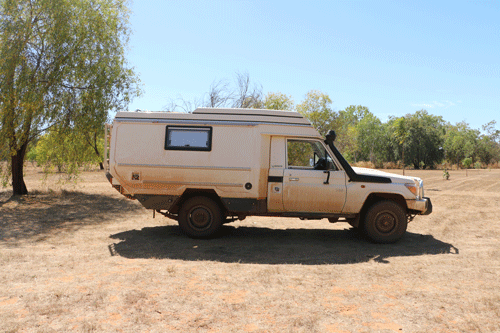

Year: 2014 including some images with Toyta back in Australia

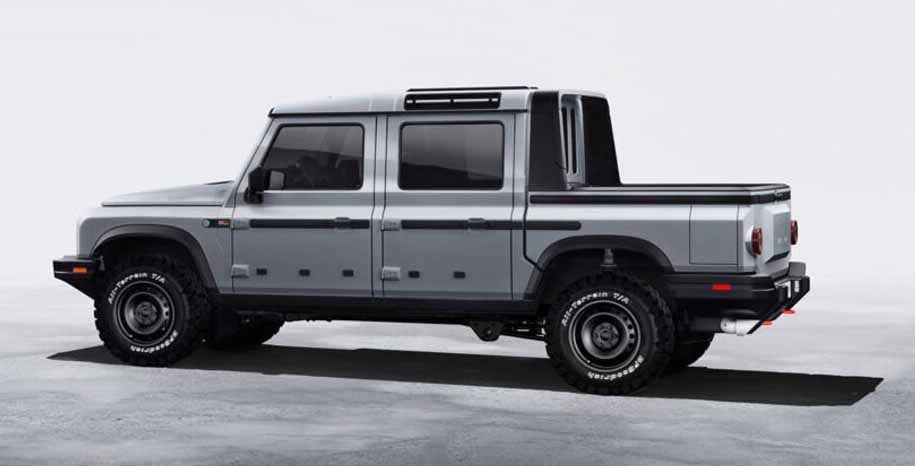

INEOS Grenadier build for 2-person world traveler overlanding.

Under Construction - more details still to come!

Purpose: 2-person overlander for traveling around the globe for multi-year trips - for blacktop and gravel - not for tracks like Old Telegraph Track (Queensland, Australia) but should survive trips like Canning Stock Route (Western Australia, Australia).
Name: no decision on care name made as of today.

Year: hopefully 2024-2025
Make: INEOS
Model: Grenadier Double-Cab (single cap preferably as that would produce less waste!)
Color: Scottish White (Solid)
Engine: BMW 3.0L Turbo Petrol, Straight-Six Engine (Why petrol: because of roughly 70-80 kg weigh savings compared to the diesels version and because of simpler technology - no DPF, no AdBlue)

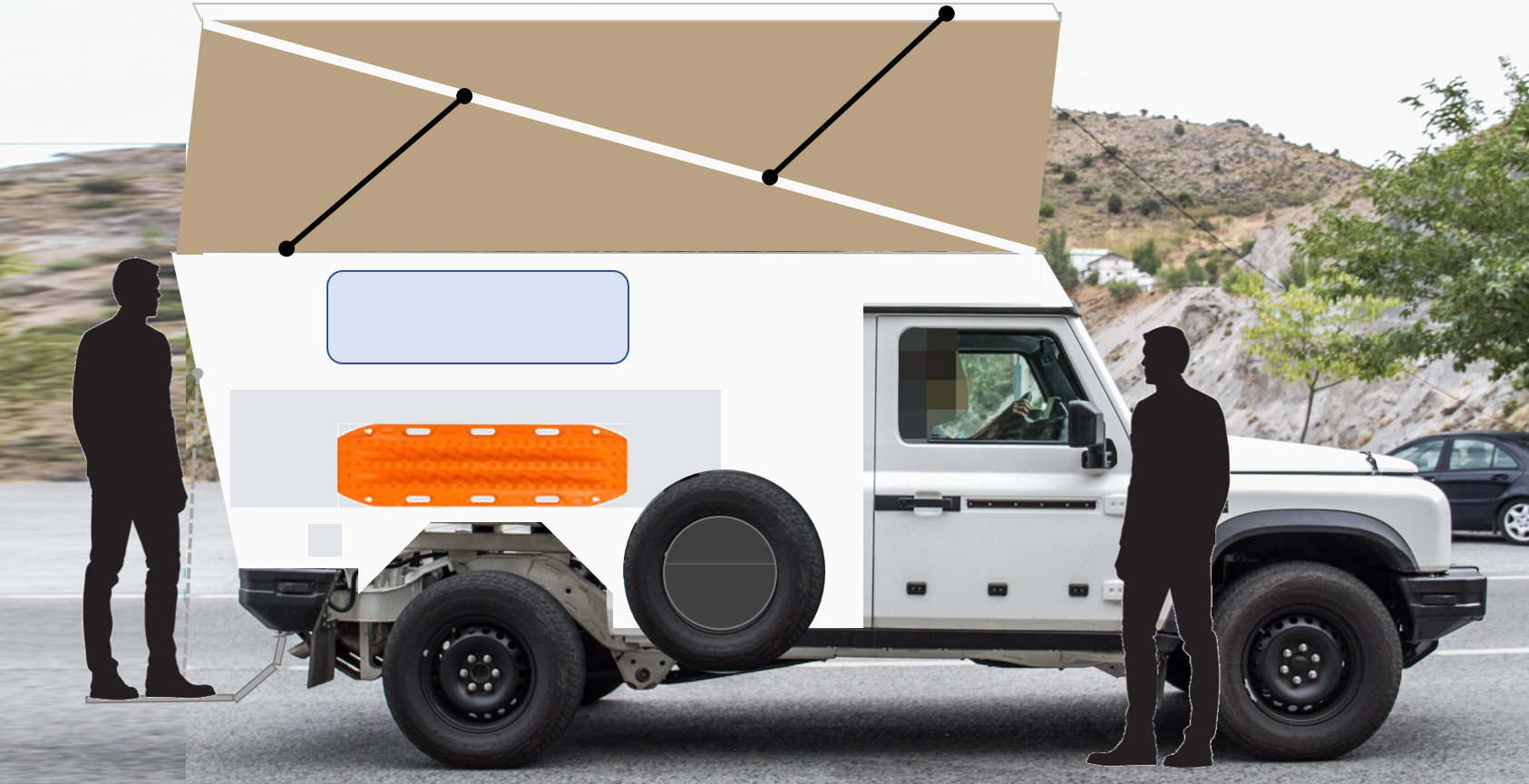

Concept (rough image)

2 seater with large indoor living space but not larger than my LC 79 - must fit in shipping container. Here is a rough sketch of the plan. It's a Grenadier cut behind the driver and co-driver door with a custom cabin stretching to the far back. Queen size bead fully lifted, like the pop-up roof. Back step for storing outside table, theft protection and for easy entry into cabin. Two spare wheels on both sided as tire choice will not be available in all countries (that is why we want to carry 2 spares). Read more below :-)

Passangers

Adults: 2

Ride

Rims: tbd
Tires
: 255/80/17 Falken Wildpeak A/T3W 33.1" (Why: not too wide and 33", other option would be 235/80/17 but not as great on road and only 235)
Suspension: tbd
Compressor: tbd

Sleep

Mattress: 160 x 200, 16cm thick, light
Substructure
: Froli like
Construction: full lift, one piece

Recovery

Boards: 4x Maxtrax (full size)
Winch
: not sure
Compressor: tbd

Power

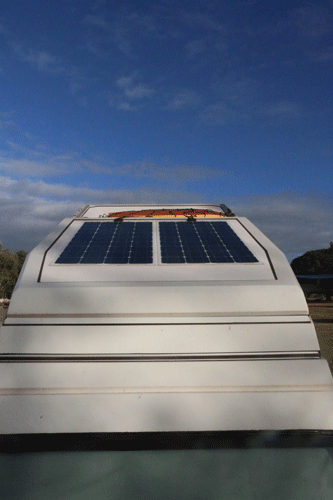

Solar: flexible panels (because they are light), monocrystalline, full coverage of roof, aiming for highest W possible (no loading of any goods on roof other than solar panels)
Inverter: Victron MultiPlus II
Solar converter: 1 or 2 Victron SmartSolar MPPT ???
Batteries: 2 or 3 Victron Batteries LFP-Smart 12,8/200

Cooking

Oven: Travel buddy
Stove: 2x Induction single plate (allowing us to cook inside and outside at the same time)

Heating

Air: tbd (most likely Webasto)
Water: tbd

And...

Still many things to be finalized...

Happy to discuss details with any other enthusiastic overlanders - just ping me at martin.s.seifert (at) me.com 👏
